Features

    • ● Housing Body: SS304 / 316L

    • ● End Cap: SS304 / 316L

    • ● ATD: SS304 / 316L

    • ● Ratining ring: SS302

    • ● O-Ring Gasket: EPDM with FDA certificate





Membrane Housing

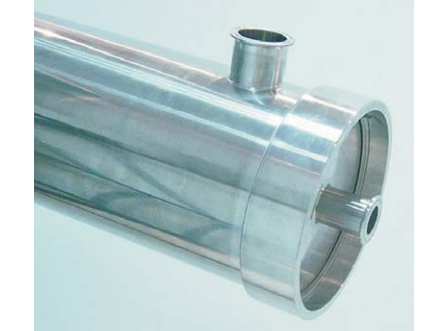

3A SERIES MEMBRANE HOUSING

HMCT 3A series membrane housing,the design and fabrication has been inspected by a certified conformance examiner, has 3-A Symbol authorization by 3-A Sanitary Standards Inc., and approved by the FDA.Suitable for use within the food and pharmaceutical industries.

MH8038(8338)SP-TC-300psi series

Genreal Properties
• SStandard 8.0” (8.3”) diameter
•  Retaining ring closure
• Side port entry:standard are 2 same side tri-clamp ports
• Max working pressure : 300psi/600psi
• Max temperature : 90℃
•  Finish: Standard is mechanical polished External&Internal surface(400mesh; Ra<0.6)
• Feed/Concentrate port connection size: 2” ferrule
• Permeate port connection: 1” ferrule
•  Model types: 8038(8338) from 1L to 6L

MH6338SP-TC-300psi series

Genreal Properties
• Standard 6.3” diameter

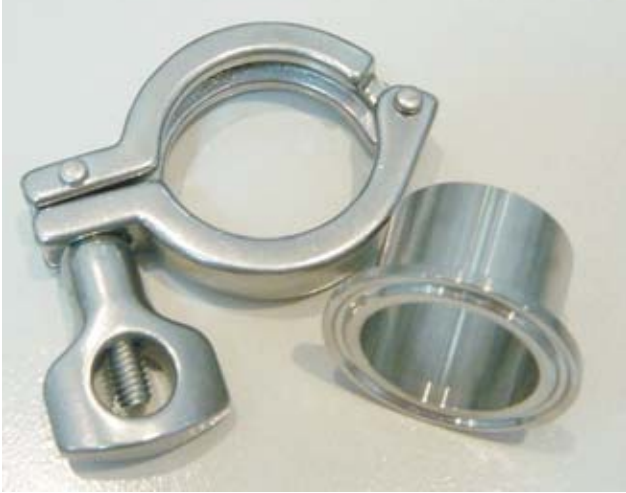

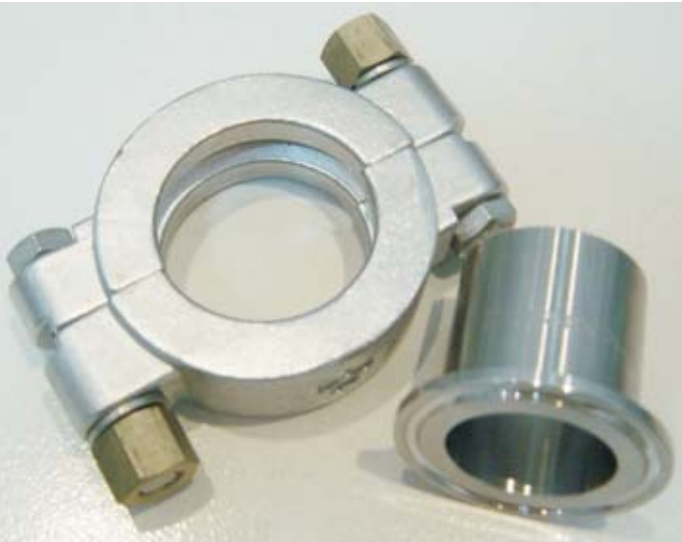

• Tri-clamp or Heavy duty clamp closure
• Side port entry: standard are 2 same side tri-clamp ports ports
• Max working pressure : 300psi
• Max temperature : 90℃
• Finish: Standard is mechanical polished External&Internal surface(400mesh; Ra<0.6)
• Feed/Concentrate port connection size: 2” ferrule
• Permeate port connection size: 1” ferrule
• Model types: 6338 from 1L to 6L

MH3838SP-TC-300psi series

Genreal Properties
• Standard 3.8” diameter
• Tri-clamp or Heavy duty clamp closure
• Side port entry: standard are 2 same side tri-clamp ports ports
• Max working pressure : 300psi
• Max temperature : 90℃
• Finish: Standard is mechanical polished External&Internal surface(400mesh; Ra<0.6)
• Feed/Concentrate port connection size: 1.5” ferrule
• Permeate port connection size: 1” ferrule
• Model types: 3838 from 1L to 4L
