● Housing Body: SS/316L
● End Cap: SS/316L
● Adapter: SS/316L or HD
● O-ring: EPDM with NSF Certificate
● Inox sector: SS304
● Cap Screws: SS 18-8

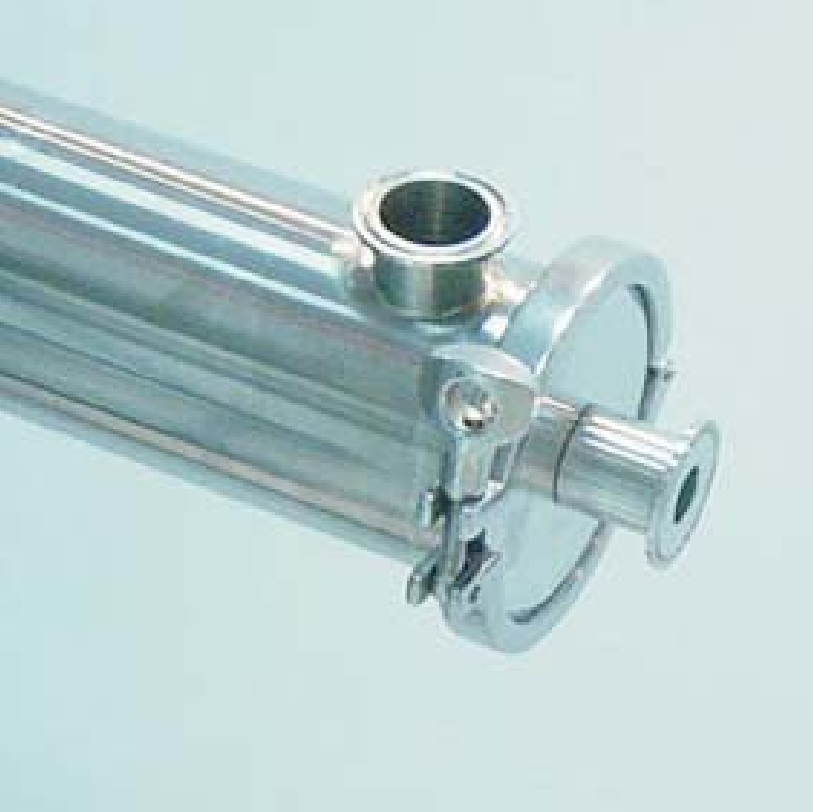

HMCT sanitary, stainless steel housings are designed for full-fit spiral elements. Suitable for use within the food and pharmaceutical industries.
Genreal Properties
• Standard 2.5”(4.0”) diameter with tri- clamp closure
• Side port entry: standard are 2 same side ports
• Max working pressure : 600psi
• Max temperature : 90℃
• Finish: Standard is mechanical polished
External&Internal surface(400mesh; Ra<0.6)
• Feed/Concentrate port connection size:
- 1” tri-clamp ferrule for 2.5” housing
- 1” tri-clamp ferrule for 4.0” housing
• Permeate port connection size:
- 3/4” tri-clamp ferrule for 2.5” housing
- 1” tri-clamp ferrule for 4.0” housing
• Model types:
- 2540 (1L-2L) for 2.5” housing
- 4040 (1L-4L) for 4.0” housing
Genreal Properties
• Standard 8.0”(8.3”) diameter with tri- clamp closure
• Side port entry: standard are 2 same side ports
• Max working pressure : 300/600psi
• Max temperature : 90℃
• Finish: Standard is mechanical polished External&Internal surface(400mesh; Ra<0.6)
• Feed/Concentrate port connection size: 2” ferrule
• Permeate port connection: 1” ferrule
Model types:: 8040 from 1L to 6L
